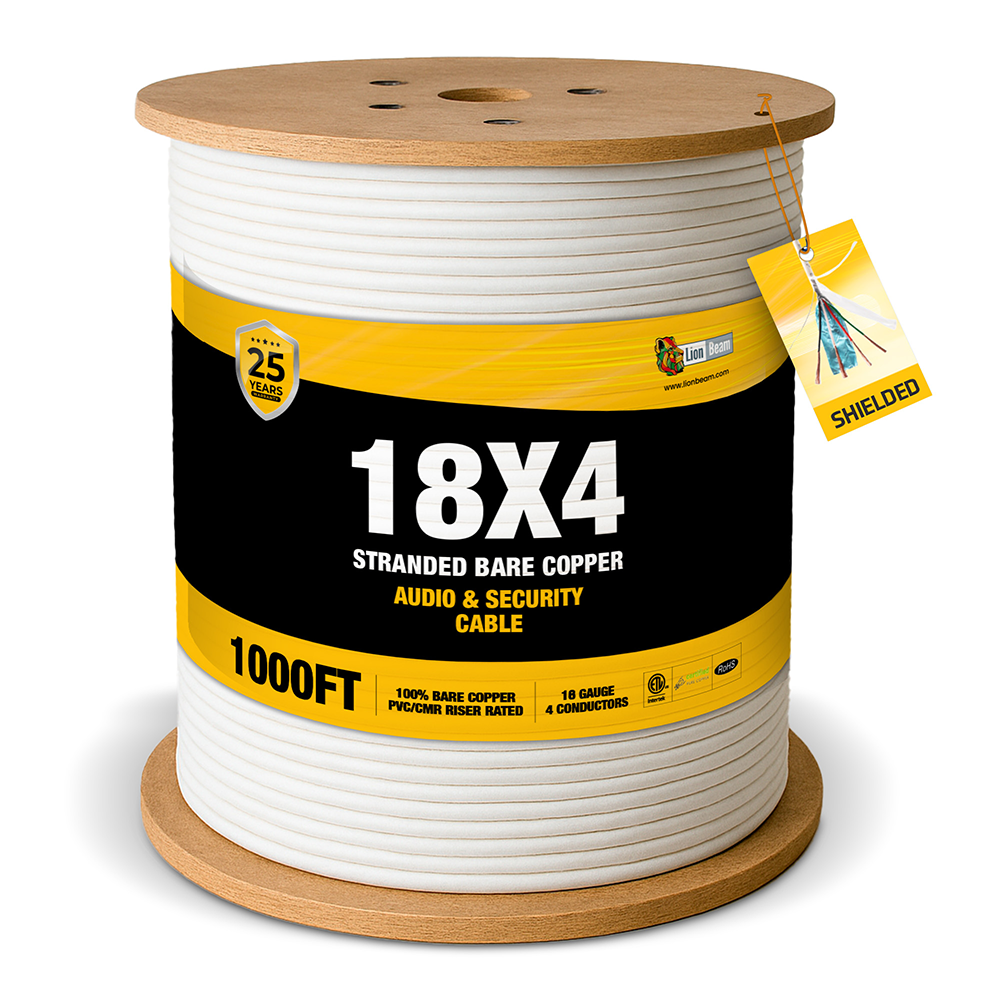

Cable 18 AWG 4/C Stranded Overall Shielded CM/CL2.
Construction:
- Conductor: 18 AWG 19/0.0092" Stranded Bare Copper
- Insulation: Polypropylene
- Insulation: Thickness 0.006" nom.
- Insulation: Colors Black, White, Red, Green
- Insulation Diameter: 0.058 nom.
- Lay Length: 2.5" nom.
- Drain Wire: 22 AWG 7/30 Tinned Copper
- Shield: .001" Thick Aluminum/Mylar
- Jacket: PVC
- Jacket Thickness: 0.015" nom.
- Outside Diameter: 0.178" nom.
Properties:
- Temperature Rating: -20 to 60°C
- Operating Voltage: 300 Volts max.
- Capacitance: 35 pf/ft nom.
- Impedance: 42 Ohms nom.
- DC Resistance: 6.5 Ohms/M' at 20°C
- Flame Rating: UL 1685 Vertical Tray
