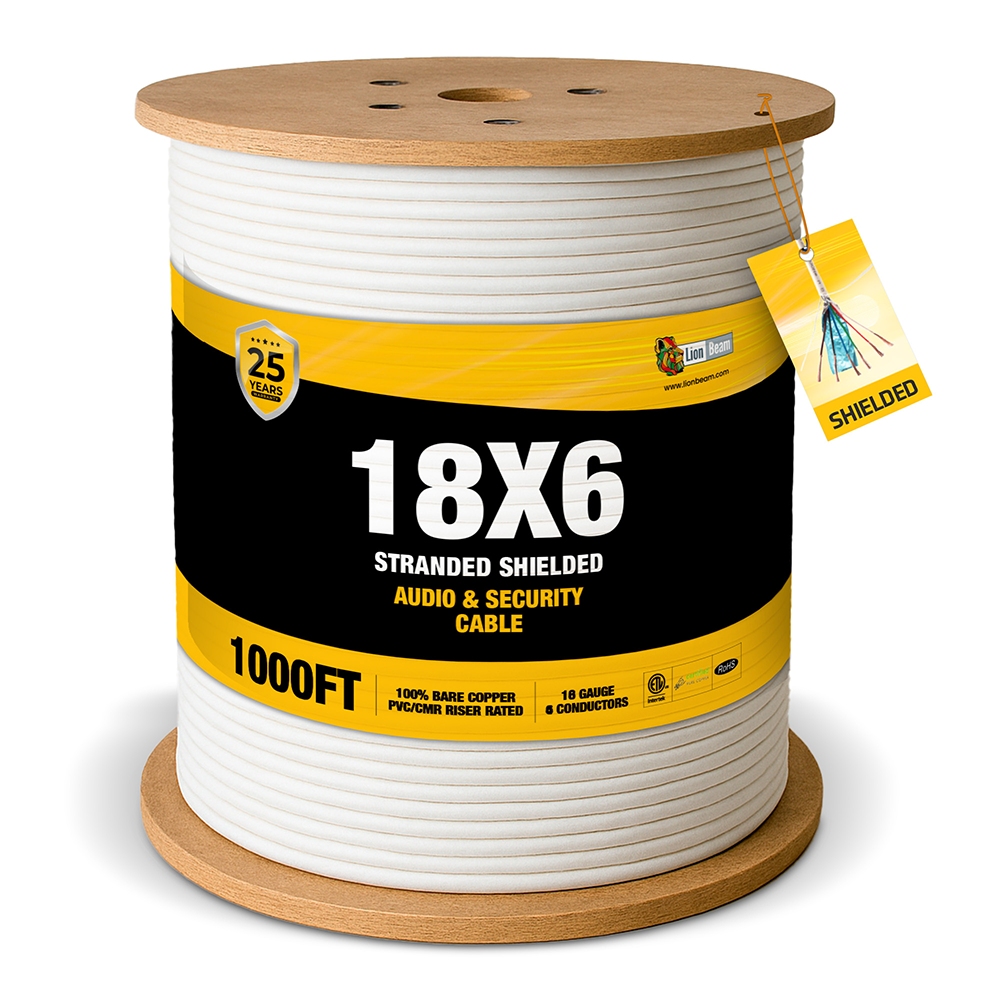

Cable 18/6 Stranded Overall Shielded CM/CL2 1000' Reel White.
Features: - Conductor: 18 AWG 19/0.0092” Stranded Bare Copper
- Insulation: Polypropylene
- Insulation Thickness: 0.006"" nom.
- Insulation Colors: Black, White, Red, Green, Blue, Brown
- Insulation Diameter: 0.058 nom.
- Lay Length: 3.5"" nom.
- Drain Wire: 24 AWG 7/32 Tinned Copper
- Shield: .001"" Thick Aluminum/Mylar
- Jacket: PVC
- Temperature Rating:- 20 to 60°C
- Operating Voltage: 300 Volts max.
- Capacitance: 35 pf/ft nom.
- Impedance: 42 Ohms nom.
- DC Resistance: 6.5 Ohms/M' at 20°C
- Flame Rating: UL 1685 Vertical Tray
